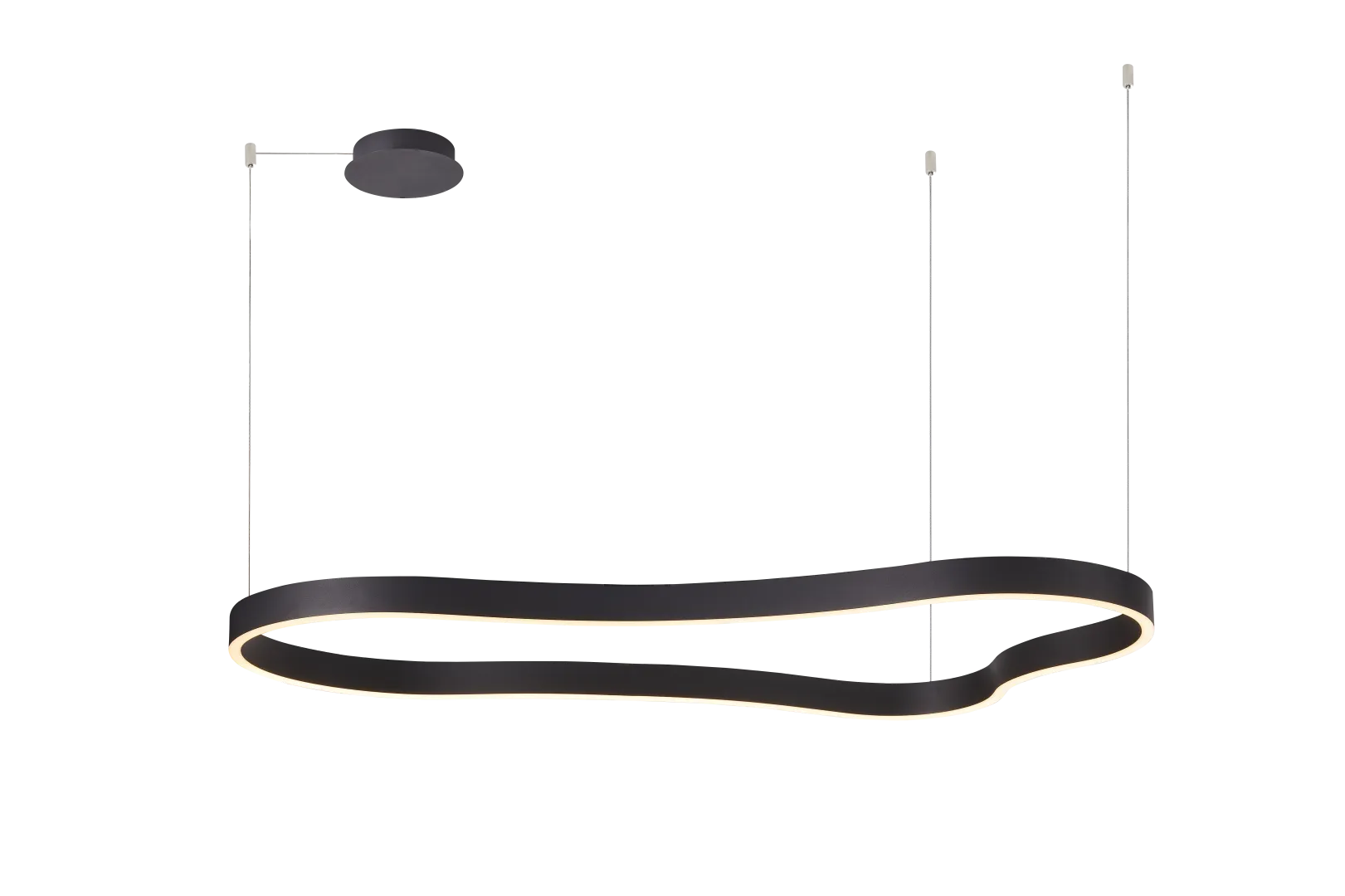

MIRABELLA 120 3000K DIMM BK
AZ5093
Files to download:
Instrukcje montażu
Karty techniczne
Deklaracja zgodności CE [PL]
Deklaracja zgodności CE [ENG]
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Type: PENDANT
Type of light source: LED INTEGRATED
Maximum power: 80W
Energy class: G
Protection class: IP20
Dominant color: BLACK
Main finish: MATTE
Dominant material: ALUMINIUM
Accent material: SILICONE
Ceiling base color: BLACK
Power cord color: CLEAR
Product height [cm]: 200
Product length [cm]: 120
Ceiling base height [cm]: 4
Ceiling base width [cm]: 22
Lampshade height [cm]: 5
Power cord length [cm]: 282
Lampshade width [cm]: 68
Lampshade length [cm]: 120
Light source: 1
Color temperature [K]: 3000
Dimmable: YES
CCT: NO
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Control options: • TRIAC DIMMER
Control type > For all: TRIAC DIMMER
Voltage: ~ 230V
Protection class (against electric shock): 1
Lumens [lm]: 3150
Net weight [kg]: 5
Gross weight [kg]: 5,6
Box 1 depth [cm]: 126
